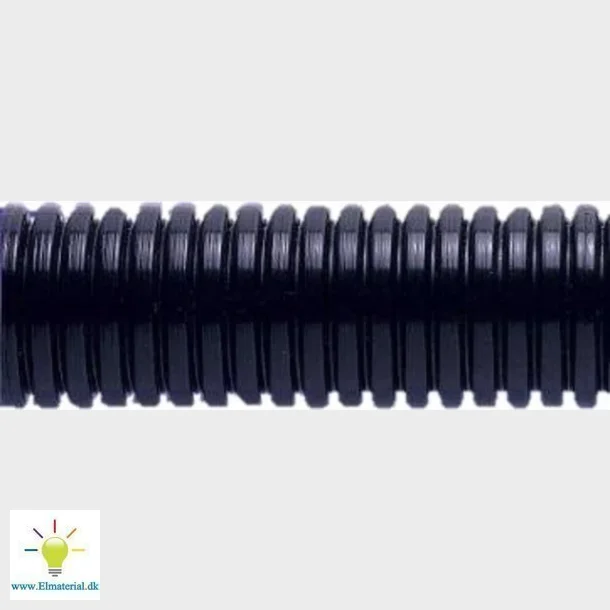

Beskyttelsesslange Pahl Nw13

Beskyttelsesslange Pahl Nw13

Enhedspris v/ 100 mtr 15,71 DKK

Vejl. udsalgspris 40,11 DKK


Ingen bedømmelse

Beskyttelsesslange Pahl Nw13 Er Fremstillet Af Polyamid 6. Beskyttelssesrøret Er Både Halogen- Og Cadiumfrie Samt Uv-Bestandig.

Model/Varenr.: 897102593
Lagerført: På lager
mtr

Beskyttelsesslangen UW PAHL 13 er fremstillet af polyamid 6 som er modificeret med en særlig varmestabilisator som gør at røret kan modstå høje temperaturer kortvarigt. Røret er Halogen- og cadiumfrie samt UV-bestandig.

Norminel størrelse.: ø13 mm
Udvendig mål.: ø15,8 mm
Indvendig mål.: ø12,7 mm


Properties / Technical data.:

Continous use temperature - 40 °C till + 140 °C
Brief application temperature + 160 °C
Density (DIN 53 479) 1,12 till 1,15 g/cm³
Moisture absorption 2,5 till 3 %
Yield stress (DIN 53 455) 40 - 70 MPa
Elongation (DIN 53 455) 50 - 200 %
E - Modul (DIN 53 457) 1200 - 2000 MPa
Dielectric strength (DIN 53 453) without break
Tensile impact strength (DIN 53 453) without break
Inflammability FMVSS 302 Typ B (v< 100 mm/min); UL 94-HB

Chemical stabilities (in direct contact)

Gasolines with 23°C .: well steadily
Brake fluids with 23°C .: well steadily
Antifreeze (+H2Ò) with 23°C .: well steadily
Cleaning agent with 23°C .: well steadily
Lubricant and fat with 23°C .: well steadily
Acids (strongly diluted) .: moderately steadily
Acids generally .: inconstantly

Permissions and approvals

The installation of UW-PAH-corrugated tubes is admissible in vehicles for danger property goods according to ADR, GGVS (size 8.5 to 50) and French standard Norm NF R - 13 - 903 UW-PAH 9
